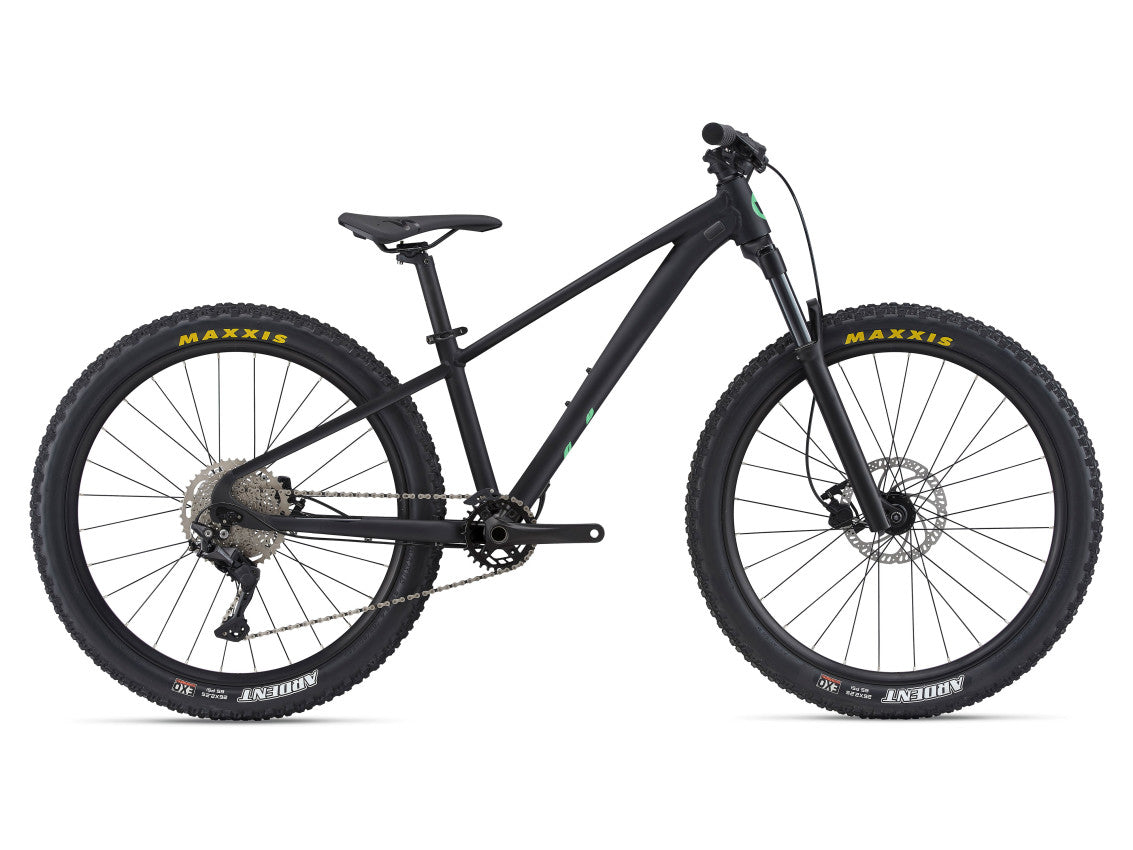

Liv STP 26

$1,299.00 $1,599.00

Designed for young riders looking to try out the dirt or pumptrack, this all-new shredder is built on a lightweight, super-strong aluminium frame with quick, responsive 26-inch wheels.

Size
Colour
2 in stock

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Techs & Features

Versatile

Built with a lightweight, strong and durable ALUXX-Grade Aluminium frameset, the bike cruises the pump tracks, trails, and streets with ease.

Quick and Responsive

The frame geometry is designed for 26-inch wheels and a low saddle height, with a taller front end for a responsive, predictable ride quality.

Maximum Control

Powerful disc brakes and a 120mm suspension fork with a lockout option gives her a safe and confidence-inspiring control.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • Regular
    140 cm 160 cm
  • Large
    155 cm 170 cm
Bike Geometry Diagram
Code Name Regular Large
A Seat Tube Length (mm) (inch) 340 390
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 545 575
D Head Tube Length (mm) (inch) 100 110
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 42 42
G Trail (mm) (inch) 98.7 98.7
H Wheelbase (mm) (inch) 1086 1117
I Chain Stay Length (mm) (inch) 435 435
J Bottom Bracket Drop (mm) (inch) 30 30
K Stack (mm) (inch) 579 588
L Reach (mm) (inch) 374 401
O Stem Length (mm) (inch) 50 50
P Crank Length (mm) (inch) 155 155
Q Wheel Size 26" 26"

Specifications

Sizes Regular, Large
Colours Black
Frame ALUXX-Grade aluminium
Fork Giant Crest 34 RCL, 100mm, 15x110mm
Shock N/A
Handlebar Giant Sport, alloy, 31.8mm
Grips Giant Sole-O
Stem Forged alloy, 0-degree
Seatpost Alloy, two-bolt, 30.9mm
Saddle Giant Sport
Pedals N/A
Shifters Shimano Deore, 1x10
Front derailleur N/A
Rear derailleur Shimano Deore RD-M5120
Brakes Tektro TDK143, hydraulic [F]160mm, [R]160mm rotors
Brake levers Tektro TDK143
Cassette Shimano CSM-4100, 11x46
Chain KMC X10
Crankset Alloy forged, 30t, Regular 155mm, Large 165mm
Bottom bracket Cartridge
Rims Giant 26", alloy
Hubs Giant Disc, 28h, QR, alloy, disc
Spokes Stainless, 14g
Tires Maxxis Ardent, 26x2.25"
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
